by Ron Harris
The techniques I use to make a Flemish Twist bowstring are not necessarily the only way to do it, but it works for me. Making a Flemish Twist string is relatively simple. It's sort of like tying your shoes--easy to do, but difficult to describe and a whole lot easier if someone shows you how.
The first thing you will need is a string making jig. For this you will
need the following materials:
A 1X6 pine board 28 inches long. It should be fairly straight and free of knots.
About 2 dozen 1 inch long finishing nails.
One 10 penny common nail.
Lay out the board dimensions as shown on Figure 1. Your measurements don't have to be precise, but try to follow them as closely as possible. When you have all the nail locations marked and the holes marked for the movable peg, go ahead and drill the holes for the peg. I use the 10 penny nail with the head cut off to a length of about 1 1/2 in. The 10 penny nail takes a 5/32 inch drill bit. You can substitute what- ever you want for the peg, but make sure you drill the hole big enough so the peg can be easily removed. After you have drilled the holes for the peg, go ahead and drive a finishing nail about halfway into the board at each nail location shown. Next, use a permanent marker or ball point pen and mark the board as shown on Figure 2. You don't have to mark the string path I've shown, but I do just in case I forget which way to wind the strands on the jig.
Now you're ready to make the bowstring. For this you'll need the following materials:
Dacron B-50 bowstring or other suitable material such as fast flight string. I recommend at least two different colors of string. It makes for a prettier string and is easier to keep track of what you're doing while making the string.One cake of string makers wax. You can substitute beeswax but string makers wax has a rosin in it that is easier to work with.
A spool of monofilament or nylon serving line and a server.
These supplies can be ordered from most archery supply mail order companies or purchased at your local dealers.
Next, you'll need to decide if you want to make a two ply or three ply string. A two ply string is made from two bundles of twisted strands while a three ply string uses three bundles. A two ply string is easier to make and for this article I have chosen to illustrate the two ply process.
| |
|
| |
|
| |
|
OK, lets say you have a 50 lb longbow, so we're going to make a 12 strand string. For a two ply string we'll need two bundles of 6 strands each or three bundles of 4 strands each for a three ply string. Grab you string jig and tie the end of the B-50 dacron string to the top left-hand nail as shown in Figure 2. If your bow is 64 inches long, put the movable peg in the hole marked 64 and start winding the strands onto the jig until you have 6 strands of string on the jig. Cut the strands with a sharp knife or razor blade right down the center line between the top nails.
Carefully pull the bundle off the jig making sure that the ends of the
strings don't move. You'll notice that the ends of each strand is slightly
shorter than the others as illustrated in Figure 3. Staggering the string
ends helps to lock each strand in place as you make the bowstring loops.
Set this bundle aside and repeat the process using a different color of
B-50 dacron string.
Wax both ends of each string bundle for about 10 inches. You may have to warm the wax so that it will stick to the strings. Use a candle or alcohol burner. Thoroughly work the wax into the bundles.

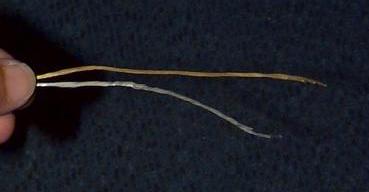

Lay both bundles side by side so that the longest strand in each bundle is aligned with the other then lay the two bundles on the ruler you marked on your jig. Grasp both bundles about 7 inches back from the ends. Hold the bundles between your thumb and forefinger as shown in Figure 4.

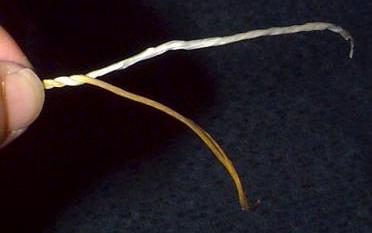

Using your other hand, twist the top bundle six or seven times in a counterclockwise direction (twist away from your body). Now take the twisted bundle and rotate it over the top of the bottom bundle (towards your body). The bottom bundle is now on top and vice versa. See Figure 5. Keep repeating this twisting and rotating process until you have braided enough to form the loop for the top limb on your bow. The width of this loop will vary as does width of different bow limbs. The loop should be wide enough so that it will slide down the bow limb 5 or 6 inches when the bow is unstrung.
Form the loop as shown in Figure 6. Make sure you align the bundles as shown (same color over same color). Grasp the bundles at the bottom of the loop and twist the two bundles of same color together. Figure 6 shows white twisted onto white forming one large white bundle and yellow twisted onto yellow forming one large yellow bundle.
Holding these two bundles between the thumb and forefinger, perform the same twisting and rotating process until the last tag end of the strings have been braided into the bow- string. Your finished loop should look like that shown in Figure 7.
After finishing the top loop, separate both bundles all the way down to the bottom. Take your 7 inch measurement at the bottom of the bundles and repeat the whole process again just as you did when forming the top loop. When braiding the bottom loop you may have to stop occasionally to separate the bundles. The bottom loop has to be just wide enough to fit over the nocks on your bottom bow limb.
Rather than forming a permanent braided bottom loop you can also choose
to just braid about the last 8 to 10 inches of the bottom bundles and tie
a timber hitch for your bottom loop.
Now that you have completed the loops you will need to put a twist into
the bowstring. Make sure you twist the bowstring in the same direction
as your braids otherwise you will untwist the loops. Put the string on
your bow and adjust for proper brace height. Allow the string to stretch
for a day or two or go out and shoot the bow. Remember to keep adjusting
the brace height by twisting or untwisting the string until all the stretch
has been worked out of the string.
With your bow strung, mark the string about where you think your nocking point will be. Mark the string again about 2 inches above the nock point and 6 inches below the nock point. This 8 inch area of the string is where you will apply the monofilament serving. Put your spool of monofilament on the serving tool and pull a few inches of line out. Now is a good time to adjust the tension of the serving tool. You want the line to come off the server with some tension so that you get a tight wrap around the bowstring. Don't use too much tension or your serving could cut through the bowstring.
Separate the bowstring at either end of the serving area and insert about 1 inch of the monofilament line through the bowstring. Begin wrapping the monofilament around the bowstring while keeping the loose end under the serving wrap. Keep wrapping the monofilament around the bowstring until you are about 1/4 inch from the end of the serving area.
Cut a 10 to 12 inch strand of the B-50 string. Fold the string back to form a loop at one end. Lay the string on the bowstring with the loop facing towards the end of the limb. Wrap the monofilament line over the dacron string about 6 to 8 more times. Keep these last few wraps a little loose. When you get to the end of the serving area pull a couple of inches of monofilament off the spool and cut the line. Cut the line and insert the end of the monofilament through the loop in the dacron string. Grasp the loose ends of the dacron string and pull them back under the last few wraps of monofilament. This will lock the end of the monofilament under those last wraps.
Now that the bowstring is finished give it a good waxing with a quality bowstring wax. Rub the wax in thoroughly using a piece of scrap leather. Rub it hard and fast so that the wax gets hot from friction and flows into the strands of the bowstring.
Now, go out and enjoy shooting your bow, equipped with a string created
by your own hands.
